Don’t Let Sensors “Talk Nonsense”! Unveiling the “Gold Medal Translators” of the Physical World

Don't Let Sensors "Talk Nonsense"! Unveiling the "Gold-Medal Translators" of the Physical World

    Have you ever encountered these awkward situations: the numbers on your smart scale fluctuating wildly, showing you've gained two pounds even though you barely ate; your phone's auto-brightness suddenly maxing out on a cloudy day, blinding you; an infrared thermometer gun giving three different readings after three scans of your forehead.

    This isn't the device "throwing a tantrum"; it's likely the "translator" behind the scenes – the sensor – "misinterpreting the message." Remember, machines rely entirely on sensors to interpret signals from the physical world. If the translation is inaccurate, the least of the problems is causing embarrassment; in industrial production or medical monitoring, it can lead to serious mistakes. Today, we're unveiling the onboarding secrets of these "gold-medal translators," exploring how they manage to "not talk nonsense" and accurately convey the truths of the physical world.

    Here's an analogy: think of a machine as a diplomat who only speaks the "Mandarin of electrical signals," while pressure, light, temperature, etc., in the physical world are different "dialects." The sensor's job is to stand between them, accurately translating the "dialects" into "Mandarin." To excel in this role, it must master several core "translation skills."

I. Piezoelectric Effect: The "Precision Stenographer" Taking Notes on Pressure

    The "Stenographer's" job requirement: Whether it's a feather's touch or a hammer's blow, it must accurately record the force's magnitude – not a stroke more, not a stroke less.

    When you sing "Qinghai-Tibet Plateau" into a microphone, your vocal cords vibrate intensely for high notes and gently for low notes; when you stand on an electronic scale tying your shoes, even the weight of the shoelaces must be precisely counted. In these scenarios, the piezoelectric sensor is that "stenographer."

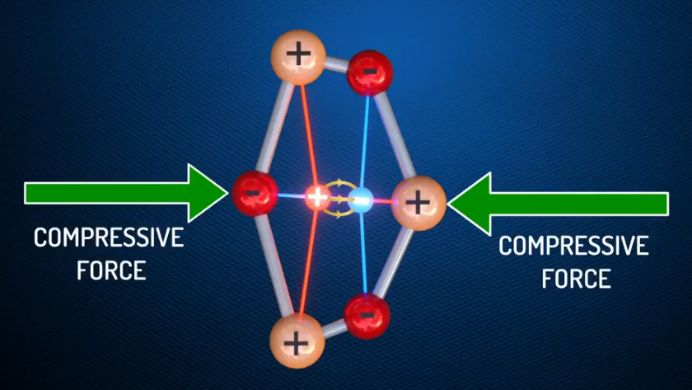

    Its "translation pen" contains special materials like quartz crystals or piezoelectric ceramics that are "naturally charged." When no force is applied, the positive and negative charges inside these materials are like soldiers lined up on a parade ground, paired up and neatly aligned, making the whole electrically neutral. But once squeezed or stretched, this "charge formation" is forcibly "pulled out of shape," forcing positive and negative charges to separate and gather at opposite ends of the material – just like two groups of people being pushed to opposite corners of the playground. This naturally creates a voltage across the material's ends. The principle is similar to compressing a spring: the harder you press, the more the spring deforms; the greater the pressure on the sensor, the more completely the charges separate, and the stronger the final output voltage signal.

    To prevent "missing" pressure details or "misrecording" interference signals, engineers have long equipped this "stenographer" with "error-proofing gear": Before leaving the factory, electronic scales are repeatedly "tested" with standard weights accurate to the gram, calibrating the ironclad rule of "X kilograms of pressure corresponds to a fixed voltage value." The piezoelectric element in a microphone is even more considerate, paired with a custom "filter foam" acting as a "sound barrier," blocking out irrelevant interference like puffs of air or drafts, focusing solely on recording the true pressure signals from vocal cord vibrations.

    In hospital ultrasound diagnostic machines, piezoelectric sensors can both emit ultrasonic waves and receive signals reflected by human tissues. They can translate vibrations as small as a few micrometers into voltage signals, accurately identifying a fetus's heartbeat or a tumor's location, with errors not exceeding 0.1 millimeters. Even more impressive are seismographs, which can precisely capture the faint vibrations in the earth's layers from distant earthquakes, buying precious time for early warnings.

    Also, did you know? The igniter in a lighter is a "side job" for a piezoelectric sensor – the mechanical force from pressing the button is instantly translated into tens of thousands of volts, generating a spark that ignites the gas. Next time you use a lighter, feel the explosive power of this "stenographer"!

II. Photoelectric Effect: The "Keen-Eyed Hunter" Counting Light "Particles"

    The "Hunter's" job requirement: Whether it's noon sunlight or candlelight at midnight, it must accurately count the number of "light particles" (photons) – not one more, not one less.

    When the noon sun shines directly, your phone screen brightens automatically to save you from squinting; when you enter a dark cinema, the screen dims quietly without glare; even on cloudy days, solar panels can "grab" the faint light scattered in the air to generate electricity quietly – hidden within these considerate moments is the figure of the "photon hunter," the photoelectric sensor.

    Its "hunting rifle" is a "photon receiver" made of semiconductor material. When light strikes the material's surface, each tiny photon is like an energy-carrying "dart" precisely hitting the electrons inside the material – if the photon's energy is sufficient, it can "knock" the electron out of the material's "grip." These liberated electrons, flowing en masse, form an electric current. The brighter the light, the denser the "darts" (photons), the more electrons get knocked out, and the stronger the current naturally becomes. It's like using a slingshot to shoot at a flock of birds in a tree; the more pellets you shoot, the denser the birds you hit, and the more汹涌 (torrential) the current formed.

    To avoid misidentifying the "prey," sensors are equipped with filters – for instance, the filter on a phone's ambient light sensor only allows visible light to pass, filtering out interfering light like ultraviolet and infrared. Camera CMOS sensors are divided into millions of pixels, each corresponding to a tiny photoelectric element, ensuring every detail of the light is accurately recorded, preventing a "blurry" translation.

    The barcode scanner at the supermarket relies on a photoelectric sensor to quickly identify black and white stripes – black stripes absorb photons, white stripes reflect them. The sensor translates this "variation in light and dark" into a voltage signal, which corresponds to product information. Its recognition speed can reach 50 times per second; even if your hand is shaking while scanning, it accurately reads the code. Also, light-controlled streetlights can accurately distinguish "dusk" from "deep night," turning on when the light diminishes to a specific value at dusk, but not turning off at night due to bright moonlight.

III. Thermoelectric Effect: The "Meticulous Diplomat" Certifying Temperature Differences

    The "Diplomat's" job requirement: Whether in bitter winter or scorching summer, it must accurately measure the temperature difference between two points – neither exaggerating nor understating it.

    An infrared thermometer gun gives a temperature reading with a scan of the forehead; thermocouples in industrial furnaces monitor the furnace temperature in real-time, ensuring steel smelting temperatures are accurate to within ±1°C. In these scenarios, the thermoelectric sensor is that "certifier."

    Its "certification tool" is a "thermocouple" made by welding two different metals together – like giving the "diplomat" a specialized "temperature difference measuring ruler." Engineers weld together metals with different properties, like copper and iron, creating a "hot junction" (e.g., attached to the object being measured) at one end and a "cold junction" (kept at ambient temperature) at the other. When the hot junction's temperature rises, the electrons there become restless and move more vigorously, like a crowd heated up; while the electrons at the cold junction still stroll leisurely as if in an air-conditioned room. The vigorously moving electrons rush along the metal "track" towards the "empty seats" at the cold end, much like a crowd rushing towards the exit after a show. This creates a stable voltage in the circuit.     The greater the temperature difference, the higher the "migration enthusiasm" of the hot-end electrons, the faster they rush to the cold end, and the stronger the resulting voltage signal – this resembles two pools of water at different heights; the greater the water level difference, the stronger the flow from the high pool to the low pool.

    To prevent this "temperature difference certifier" from making "misjudgment" blunders, engineers equip it early with "error-proofing kits": Take the infrared thermometer gun – its "cold junction" is accompanied by an additional tiny sensor specifically monitoring the ambient temperature in real-time, equivalent to installing a "calibrator" on the "certification ruler," ensuring the cold junction baseline is stable, thus making the measured temperature difference naturally accurate. Meanwhile, the thermocouples "serving" in industrial furnaces are more hardcore, clad in high-temperature-resistant特种材料 (special material) "armor." Even working for long periods inside 1000°C furnace chambers, they can withstand corrosion and resist deformation, maintaining a stable "translation" standard.

    The thermostat in a home oven relies on a thermoelectric sensor to monitor the internal temperature. When the temperature reaches the set value, the voltage signal translated by the sensor causes the heating element to stop; when the temperature drops by 1°C, it triggers the heating element to start again. It is this precise control that allows cakes to be baked crispy outside and tender inside, without burning. Also, the temperature display on a thermos cup is thanks to a thermoelectric sensor, showing the water temperature inside in real-time, with an error not exceeding ±0.5°C.

IV. Hall Effect: The "Genius Codebreaker" Deciphering Magnetic Fields

    The "Codebreaker's" job requirement: Whether it's a strong or weak magnetic field, it must accurately interpret its strength and direction – neither confusing them nor being vague.

    Your phone screen turns off when you close the flip cover and turns on when you open it; while a car is moving, the ABS system accurately monitors wheel speed. In these scenarios, the Hall sensor is that "codebreaker."

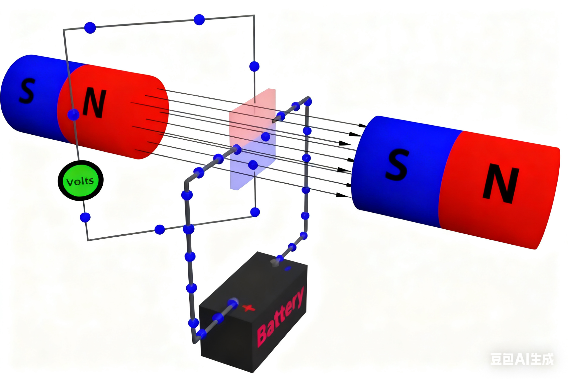

    Its "decoding machine" is a carefully designed semiconductor chip, like giving the "codebreaker" a dedicated computer capable of interpreting invisible codes. When electric current flows through the semiconductor like an orderly "electron river," if a perpendicular magnetic field is applied nearby, this "electron flow" experiences a lateral push from the "Lorentz force" – just like a directional gust of wind suddenly blowing against raindrops, all electrons are pushed uniformly towards the same side of the semiconductor. As electrons accumulate more on one side, a noticeable "potential difference" forms across the two sides of the semiconductor – this is the Hall voltage, which accurately reflects the magnetic field situation. The stronger the magnetic field, the greater this "lateral wind force," the more concentrated the electrons are pushed, and the more significant the voltage difference across the sides naturally becomes. This scenario is like you walking steadily down a corridor while someone pushes your shoulder with a constant force; the greater the push, the farther you deviate from the corridor's centerline, and this "deviation distance" is the Hall voltage's intuitive "translation" of the magnetic field's strength.

    To avoid "decoding errors," sensors use "orthogonal design" – ensuring the magnetic field direction is perpendicular to the current direction, which produces the most stable Hall voltage. The Hall element inside a phone is shielded, filtering out stray magnetic fields generated by other electronic components, only recognizing the magnet in the flip cover's field.

    The compass function in a smartwatch relies on a Hall sensor to detect the direction of the Earth's magnetic field, translating the magnetic field signal into "North, South, East, West" directions; even in cities full of tall buildings, the error doesn't exceed 5 degrees. Also, the speed control throttle grip on an electric bicycle: when you rotate the grip, the internal magnet's position changes, the Hall sensor detects the change in magnetic field strength, translates it into a voltage signal controlling the motor's speed, allowing smooth speed changes without sudden acceleration or deceleration.

"Accurate Translation" is the Smart World's Foundation of Confidence

    From the "pressure shorthand" of the piezoelectric effect, to the "photon hunting" of the photoelectric effect; from the "temperature difference certification" of the thermoelectric effect, to the "magnetic field deciphering" of the Hall effect – the core competency of these "gold-medal translators" has never been just "being able to translate," but "translating accurately."

    The reason we can trust smart devices – believing a glucometer's reading can guide medication, believing an autonomous vehicle's sensors can avoid obstacles, believing a weather station's sensors can accurately forecast the weather – all stems from the sensors' "zero-error" translation. They are like the "reliable eyes and ears" of machines, accurately conveying every detail of the physical world to the machine's "brain."

    Next time you encounter a "thoughtful" moment from a smart device, don't just marvel at the magic of technology. Take a moment to silently applaud the sensor behind it – it is this translator that "doesn't talk nonsense" that allows machines to read the world, making our lives safer and smarter. And in the future, as technology develops, these "translators" will become more precise and more sensitive. Perhaps one day, they will be able to perceive the microscopic world invisible to us, opening even wider doors for technology.
